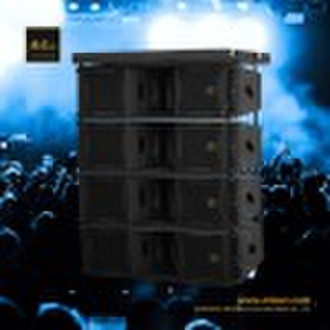

line array

ML-100 Line array ML100 Line Array speakerFrequency Range(-10dB):60Hz-19kHzFrequency Response(+/-3dB):65Hz-19kHzHorizontal Coverage Angle(-6dB):85degrees nominal(400Hz-19kHz)Vertical Coverage Angle(-6dB):Varies with array size and configurationMaximum Peak Output:127 to 133dB SPL 1m(frequency/bandpass dependent)Recommended Amplification:LF:600W-1200W into 8 ohms(2xLF Neodymium speaker,Voice coil diometer 65/2.5”MF:240-480W into 8 ohm,Neodymium speaker,Voice coil diometer 40/1.7"HF:240-480W into 8 ohms,2*HF,Neodymium driver,Voice coil diometer 65/2.5"Transducer SectionsLow Frequency:Two D10E921-16,265mm(10in)dia.,65mm(2.5in)dual coil,Two MD6C100-16 168mm(6.5in).medium 40mm(1.7")Neodymium Differential Drive,Direct CooledHigh Frequency:Two DH640-16,65mm(2.5 in)diameter beryllium diaphragm,38mm(1.5 in)throat diameter Neodymium compression drivers Speaker parameters:Low MODEL:D10E921-16Model Nominal diameter Power handing capacity Program power Nominal impedance Sensitivity (1W/1m) Frequency range Voice coil diameter D10E921-16 inch. W(AES) Watts Ω dB Hz in D12F901-16 10 300 600 16 98 55-2.5K 2.5 Mid: MD6C100-16 Model Nominal diameter Power handing capacity Program power Nominal impedance Sensitivity (1W/1m) Frequency range Voice coil diameter inch. W(AES) Watts Ω dB Hz in MD6C100-16 6.5 120 240 16 96 200-6K 1.7 parameters:HF MODEL:DH640-16Model Throat diameter Power handing capacity Program power Nominal impedance Sensitivity (1W/1m) Frequency range Voice coil diameter inch W(AES) W Ω dB Hz in D75A 1.4 70 140 16 115 600-19K 2.5
